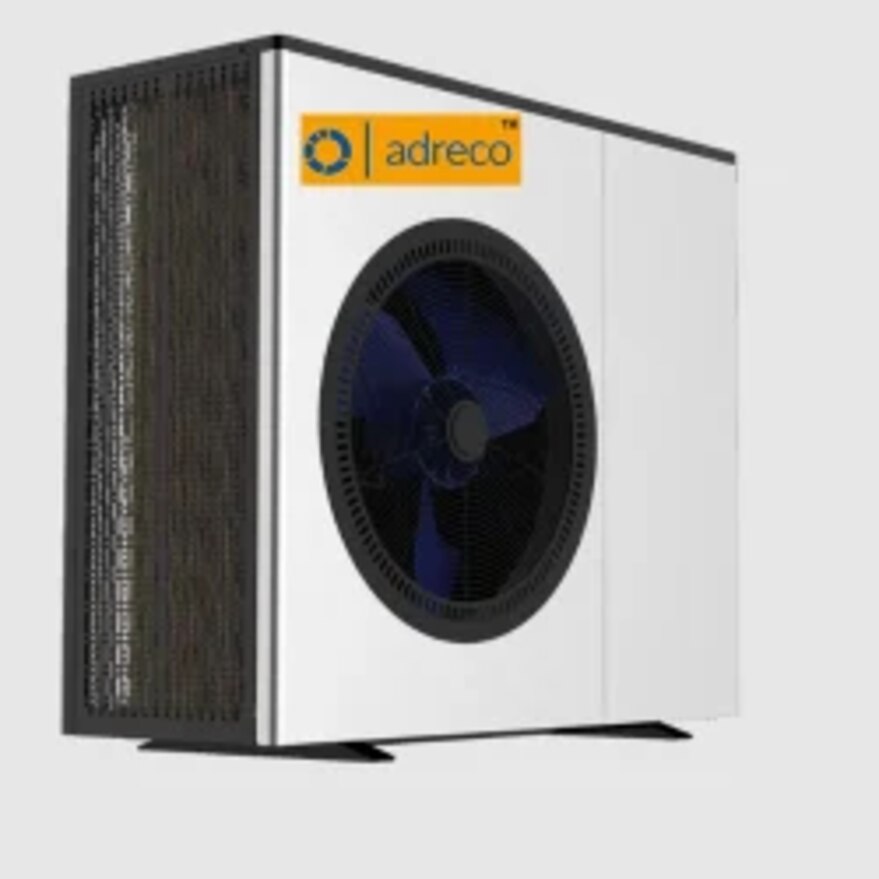

A fixed-speed heat pump responds to changing demand by switching on at full output and off again, while an inverter system changes compressor speed to deliver a closer match. By the end, you will know how its sensors and refrigerant controls work together, which performance figures matter, and when modulation cannot prevent higher energy use or backup heating.
Key takeaways
- Sensors compare outdoor, room, water-flow and cylinder temperatures with target values.
- The inverter varies compressor speed instead of switching the heat pump fully on and off.
- Lower-speed operation can reduce electricity use, cycling and indoor temperature swings.
- Compare minimum and maximum output, efficiency ratings, operating range and backup heating capacity.
How the controller detects the building’s current heat demand
The controller detects current heating demand by comparing sensor readings with target temperatures, then using the difference, or control error, to set compressor capacity. An inverter heat pump does not respond to one sensor alone; it combines outdoor, room, water-flow and cylinder information.
| Sensor | What it reveals | Control response |
|---|---|---|
| Outdoor-air temperature | Heat loss expected from weather | Weather compensation raises or lowers the flow-temperature target |
| Room-temperature sensor | Indoor comfort relative to its setpoint | Increases or reduces demand |
| Flow-temperature sensor | Water temperature leaving the heat pump | Adjusts output toward the target |
| Return-temperature sensor | Water temperature after passing through emitters | Uses the flow-return gap to judge heat removal |
| Cylinder-temperature sensor | Stored hot-water temperature | Calls for a separate, higher-temperature reheating mode |
In mild weather, weather compensation lowers the flow temperature, reducing temperature lift and allowing efficient part-load operation. As outdoor conditions become colder and the building loses more heat, it raises the target gradually rather than demanding maximum output immediately.
Thermostat settings, zoning and deadbands shape the signal. A wide deadband can let rooms become too warm or too cold before the compressor reacts, while abrupt zone changes create sudden control errors. During cylinder reheating, higher condensing temperature can reduce COP even with the same compressor.
A stable heating demand gives the system longer, steadier runs. Frequent calls for heat force unnecessary starts, stops and transitions between operating states.
How compressor speed, refrigerant pressure, the expansion valve and fan work together
A variable-speed compressor changes heating capacity by changing compressor frequency and rotational speed. Unlike a fixed-speed compressor that switches between full output and off, it slows down when the building needs less heat and speeds up when demand rises. Lower speed reduces refrigerant mass flow and usually lowers the pressure lift required at part load.
- Compressor: the inverter changes electrical frequency, setting the compressor’s rotational speed and refrigerant flow rate.
- Refrigerant pressure: the controller adjusts pressure targets to match the required heating output without driving the circuit harder than necessary.
- Electronic expansion valve: its opening meters refrigerant into the evaporator and helps maintain stable superheat as conditions change.
- Fans: outdoor and indoor fan speeds maintain suitable airflow and coil heat transfer, while avoiding unnecessary fan electricity use.
- Protection controls: coordination limits excessive discharge temperature, poor oil return, and unstable superheat.
The electronic expansion valve distinction is important: precise refrigerant metering does not prove that a unit has an inverter-driven compressor. A fixed-speed heat pump can also use an electronic expansion valve.
These controls create a continuously adjusted operating point, not an unlimited range from zero to the nameplate maximum. Every model has a minimum stable capacity; below it, the system must cycle or use storage volume.
The controller therefore balances compressor speed, refrigerant pressure, valve position, and fan speed rather than treating modulation as a compressor-only function.
Why lower-speed operation can reduce electricity use and improve comfort
Lower-speed operation can reduce electricity use because the compressor avoids repeated starts, inrush events and stop-start losses. Longer runs also reduce room-temperature swings and cycling noise, while maintaining steadier air circulation.
The saving is not automatic. Inverter electronics, circulation pumps, fans and crankcase heaters still consume electricity at reduced output. A fixed high flow-temperature setting can also force unnecessary temperature lift; weather compensation improves efficiency by using milder water temperatures when outdoor conditions allow.
Read these four figures separately:
- Rated heating capacity: output at a named test condition, such as a specified outdoor temperature and flow temperature.
- Minimum modulation capacity: the lowest stable output before the unit must cycle or use storage.
- Maximum heating capacity: the highest available output at the stated test condition, not a guarantee at every outdoor temperature.
- Seasonal efficiency: SCOP under EN 14825, which combines multiple outdoor temperatures and part-load conditions.
The COP versus SCOP? distinction matters: COP is an instantaneous result at one test point, whereas SCOP represents seasonal performance. Minimum and maximum values define the usable operating envelope, not an unlimited range from zero to maximum.
An oversized unit can reach its minimum modulation capacity even when the building needs less heat, then cycle anyway. Correct sizing keeps demand above that floor for longer periods, allowing lower-speed operation, steadier comfort and fewer wasted transitions.
What happens when demand exceeds the heat pump’s available capacity
At the local design temperature, an inverter heat pump may already be running near maximum speed, so it cannot increase output indefinitely. Heating capacity and COP usually fall as outdoor temperature drops; a nominal output measured in mild conditions does not guarantee the same output during the coldest design weather.
A controller facing a shortfall can increase compressor speed, raise the target flow temperature, switch on a backup heater, or let indoor temperature drift. Raising water temperature helps undersized radiators, but a high flow temperature creates a larger temperature lift and lowers COP compared with low-temperature space heating.
Hot-water recovery has the same penalty because the cylinder requires a higher condensing temperature.
During a defrost cycle, refrigerant operation reverses temporarily to melt ice from the outdoor coil. Indoor heat delivery can fall while the compressor consumes electricity. Frost depends on humidity, coil temperature, airflow, coil cleanliness and the defrost algorithm, not outdoor temperature alone.
Check the published data before treating an operating limit as proof of performance:
- Find heating capacity and COP at named EN 14511 test points, including the local design temperature.
- Check whether those figures apply at the required flow temperature, not only at low-temperature heating conditions.
- Ask how the backup heater operates when compressor output is insufficient.
- Treat the stated ambient operating limit as a boundary, not evidence of full capacity across the range.
- Use seasonal data where available; a steady heating COP does not include every defrost cycle or hot-water recovery period.
How to compare inverter heat-pump specifications before choosing a system
Judge modulation against the building’s heat loss, not the largest model number. Ask for the unit’s minimum and maximum heating capacity at several outdoor temperatures, then compare its output at your local design temperature with the calculated heat loss.
Request these figures from the supplier:
- Modulation range and minimum stable capacity
- COP at the local design temperature
- Required flow temperature for the stated output
- Sound power during part-load and full-load operation
- Backup-heater control during cold weather
- Defrost control, including its effect on indoor heat delivery
Check whether minimum capacity falls below the building’s common spring and autumn load. If it does not, the system can still cycle despite having an inverter compressor.
| Document or figure | What it tells you | What to compare |
|---|---|---|
| EN 14511 | Capacity and COP at named test points | Output and efficiency at your design temperature |
| EN 14825 SCOP | Seasonal performance across temperatures and part-load operation | Expected seasonal behaviour, not one instant |
| HSPF2 and SEER2 | North American heating and cooling test metrics | Use within the same rating system, not against SCOP directly |
For a project using Adreco Engineering Pvt Ltd, request a project-specific selection sheet showing output, COP, flow temperature, minimum modulation, sound power, and backup-heater behaviour at local conditions.
A buffer tank can prevent short cycling when minimum output remains too high; larger emitters, improved insulation, and weather compensation can lower the required output and flow temperature. If the unit still misses design-temperature demand, choose a better-sized system rather than using storage to hide an undersized heat pump.
Frequently asked questions
How does an inverter heat pump detect a building’s current heat demand?
Its controller compares target temperatures with readings from outdoor, room, water-flow and cylinder sensors. The resulting control error helps set compressor capacity.
How do the compressor, expansion valve and fan work together?
The inverter sets compressor speed, while the expansion valve regulates refrigerant flow and the fan moves air across the heat exchanger. The controller coordinates these parts to deliver the required heat output.
Why can lower-speed operation use less electricity?
Running at a lower speed avoids frequent full-power starts and stops. It also provides steadier heat, which can reduce temperature swings and improve comfort.
What happens when heating demand exceeds the heat pump’s capacity?
The compressor runs at its available maximum. If that output cannot meet the target, the system needs a larger heat pump, supplemental heating, or reduced demand through insulation and other building improvements.
Which inverter heat-pump specifications should you compare?
Check minimum and maximum heating output, output at your local design temperature, efficiency ratings, operating temperature range, sound level, water-flow requirements and backup-heater capacity.
